JC-100NC CNC Metal Circular Cold Saw Machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Chine Chern
Model Number:
JC-100NC
Voltage:
380V 50HZ
Rated Power:
11KW
Dimension(L*W*H):
1750x2100x2100mm
Weight:
2850kg
Certification:
ISO9001:2008
Solid bar O.D:
16mm-100mm
Angle profiles:
20mm-80mm
Round tube O.D:
16mm-100mm
Host Motor:
11KWx4P
Oil pump motor(KW):
2.2x4P
Sawblade Specification(mm):
315x2.3/360x2.6
Pin hole + Hole diameter(mm):
4x10xPCD40x90(std)
Feed length(mm):
6mm-600 once
Blade speed (RPM):
30-130RPM
Packing size (LxWxH)(mm):
1750x2100x2100
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One year
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
Plywood Package
Port
ShenZhen/GuangZhou
Lead Time :
Shipped in 30 days after payment

   JC-100NC CNC Metal Circular Cold Saw Machine

     Main Specifications:



   1.Full-automatic super hard metal circular saw machine adopts servo motor control



  2.Innovative gear box design together with precision process technology enables the gear box achieve zero clearance,Prolong the life of saw blade



 3. TCT Tungsten Carbide saw blade is suitable for cutting iron/steel solid bar.



  4.HSS Saw blade is suitable for cutting hollow pipe . Unique gear design ensures that smooth cutting and low noises,improve cutting efficiency,reduce power consumption ,prolong the life of saw blade.



  5.Water-solubility cutting oil with automatic circulation cooling pump.



   6.Cutting length precision: ±0.05- ±0.1mm



   7. Servo motor drive + ball screw feed transmission



   8. Hydraulic driven sawhead feed for cutting motion



   9.PLC Control,Japan Fuji Touch Screen,Japan servo motor,TaiWan Shihlin Inverter for spindle speed



 Technical Parmeters:



Specification  JC-80NCJC-100NC
Cutting CapacitySolid bar O.D
8mm-80mm16mm-100mm(110mm)
Angle profiles15mm-70mm20mm-80mm(85mm)
Round tube 16mm-100mm16mm-100mm
Square tube 20mm-80mm(85)
Motor (KW)7.5KWx4P11KWx4P
Oil pump motor(KW)2.2x4P2.2x4P
Advance   Servo motor (KW)Ball Screw+ AC Servo Motor(1.3)Ball Screw+ AC Servo Motor(1.3)
Feed   Servo Motor (KW)Ball Screw+ AC Servo Motor(2.0)Ball Screw+ AC Servo Motor(2.0)
Sawblade Specification(mm)250/285x2.0t315x2.3/360x2.6
Pin hole + Hole diameter(mm)4x11xPCD63x11(std)4x10xPCD40x90(std)
Cutting length(mm)6-600 once/600-999 twice feed 6-600mm once/600-999mm(multiple feed)
Blade speed (RPM)30-15030-130
Auto Chips Conveyor Chain Drive (Opt)Chain Drive (Opt)
Cutting Fluid Air Compressed Oil Mist Air Compressed Oil Mist
Packing weight(bottom) (kg)27502850
Packing size (LxWxH)(mm)1750x1950x19301750x2100x2100
Load Capacity(mm)80x6000Lx13pcs100x6000Lx10pcs
Rack Size(LxW)(mm)5300Lx1600W5300Lx1600W

  Description:

 SEPARATING SYSTEM

  Separator automatically separates trim edge cut and residue into different storage tanks.



SAW BLADE ANTI VIBRATION DEVICE

Employs an unique electromagnetic brake system to eliminate vibration and sliding caused by gear backlash, ensuring a superb finish cut surface and enhancing blade service life.(Only for CS,CS-S machines)

UNIQUE GEAR HEAD DESIGN

The unique gear transmission system ensures smooth cutting with high efficiency,

less noise,and low power consumption,and enhances saw blade service life.
OIL MIST COOLING SYSTEM

 Cools down blade temperature when cutting and provide antirust for cut pieces. Special designed with outwardly open door  for easy maintenance and adjustment.


 OVERHEAD CLAMPING VISE JAW
Ensure material being clamped firmly and avoid vibration while fast cutting single bar or 2 pieces same size bar at one time.
FLOATING SWIVELABLE REAR VISE SADDLE
This hydraulic floating rear vise saddle, linked to the servo motor and ball screw, is excellent for gripping and delivering even bowed or bent bar, ensuring minimum worn surface and greatest cutting accuracy.
TOUCH SCREEN CONTROL
It's a fuzzy, graphic, colorful,digital and tactile control panel,allowing easy presetting for various work-piece. It has an automatic detector display to indicate operational errors and causes of malfunctions.

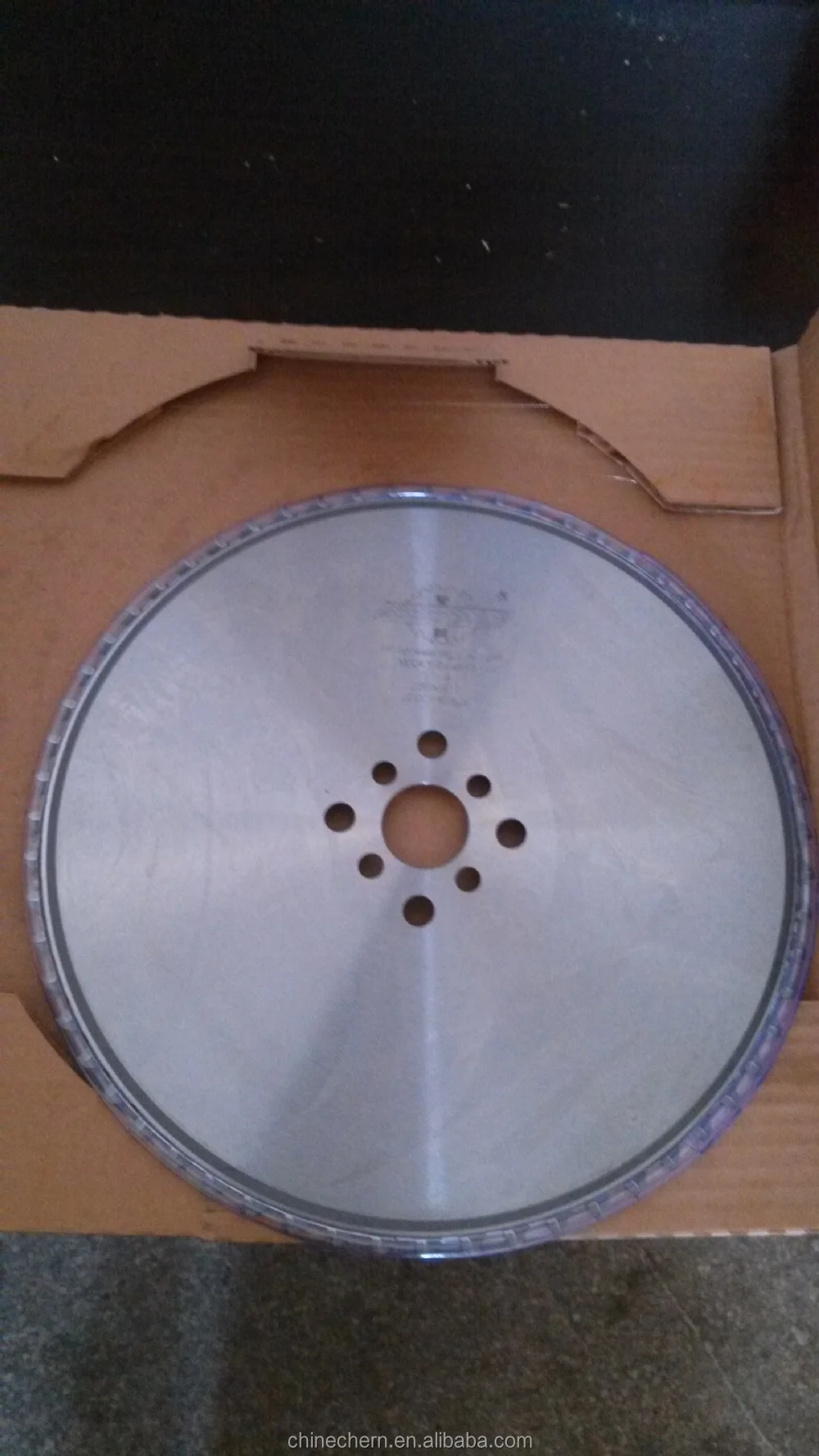

TCT Saw Blade :

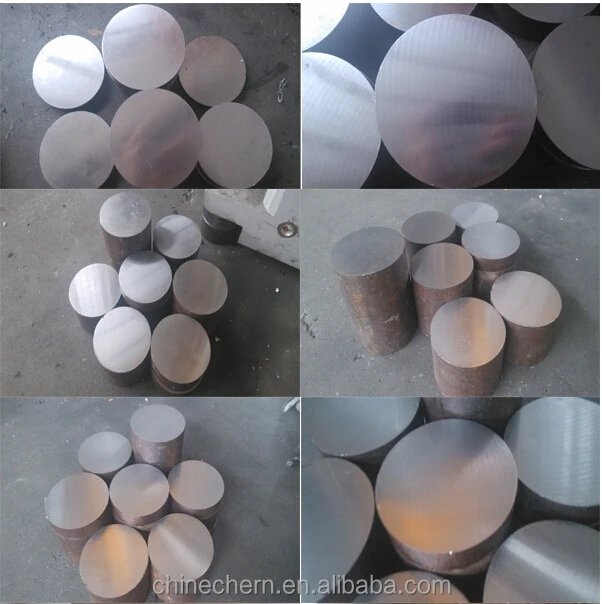

 Samples :

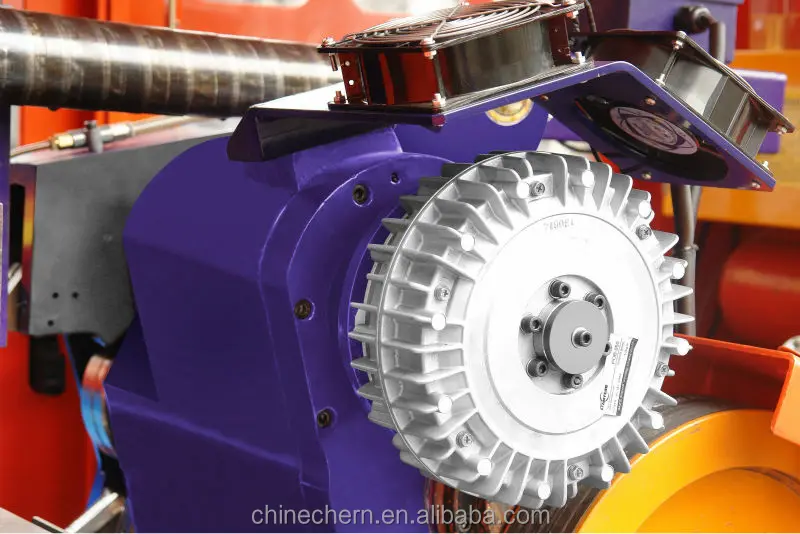

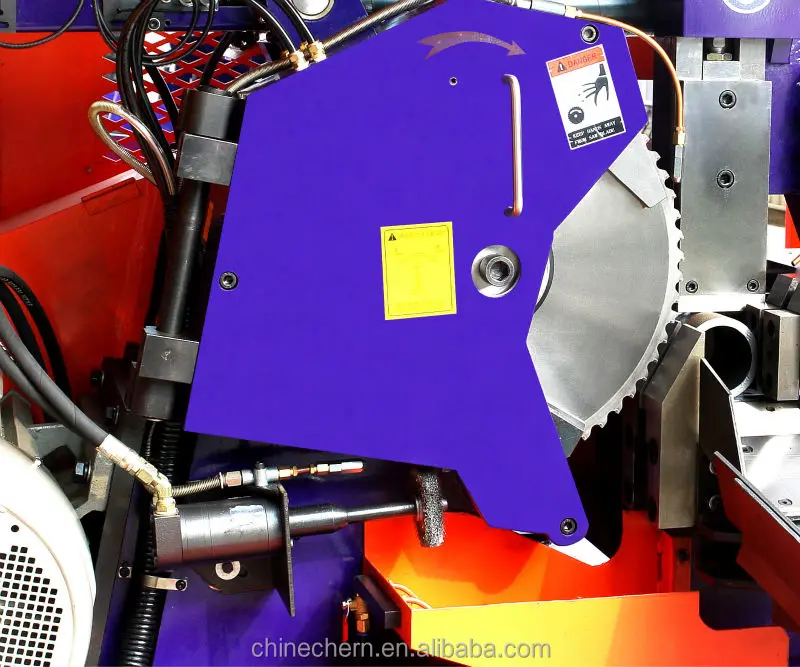

 Machine Picture
