Full Automatic Metal Solid Bar Cold Saw Machinery

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Chine Chern
Model Number:
JC-200NC
Voltage:
380V 50HZ
Rated Power:
18.5KWx6P
Dimension(L*W*H):
2350x2950x2450mm
Weight:
4600kg
Certification:
ISO9001:2008
Solid bar O.D (mm):
80mm-200mm
Round tube O.D (mm):
80mm-200mm
Angle profiles:
80mm-160mm
Spindle motor:
18.5KWx6P
Oil pump motor:
4.0KWx4P
Feed length (mm):
6mm-600mm/once
Blade speed (RPM):
30-90RPM
Servo motor:
4.0KW
Saw blade O.D (mm):
600*3.0*3.5
Machine Measurement (mm):
2350x2950x2450mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One year
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
Splint Pallet
Port
ShenZhen/GuangZhou
Lead Time :
Shipped in 30 days after payment

Full Automatic Metal  Solid Bar Cold Saw Machinery



Main Features :



MECHATRONICS CONTROL High speed precision cutting with an almost ground finish surface and excellent repeatability has been made possible by numeric control, servo motor feeding cut-off and bar feed, and vastly improved carbide saw blade.
CUTTING FASTER
CS,CS-S Series
Suitable for cutting most steels & alloys ranging from structural to stainless steels (SS,SC,SUS).
Cutting speed is 5 times faster than machine with HSS blade.
CS-F Series
Designed especially for cutting nonferrous metal, such as aluminum alloy, copper, plastic steel. 10
times faster than cutting by machine with conventional HSS blade.
ENHANCE BLADE SERVICE LIFE
Rigid structure and anti-vibration design ensure excellent and accurate repeatability with finishing cut
surface for high-speed cutting and longer saw blade life.
LESS MATERIAL CONSUMING Vastly improved carbide saw blade is thinner, achieving less material consuming and resulting in less
blade wear and less power consumption.



Parameters :

SpecificationJC-200NC
Cutting CapacitySolid bar O.D (mm)80mm-200mm
Angle profiles80mm-160mm
Round tube80mm-200mm
Square tube80mm-200mm
Motor (KW)18.5KWx6P
Oil pump motor(KW)4.0KWx4P
Advance   Servo motor (KW)Ball Screw+ AC Servo Motor(4.0)
Feed   Servo Motor (KW)Ball Screw+ AC Servo Motor(4.0)
Sawblade Specification(mm)560x2.5 x 3.0(std)
Pin hole + Hole diameter(mm)4x21xPCD120x50(std)
Cutting length(mm)6-600 once/600-999 twice feed
Blade speed (RPM)30-90
Auto Chips ConveyorChain Drive (Opt)
Cutting FluidAir Compressed Oil Mist
Packing weight(bottom) (kg)4600
Packing size (LxWxH)(mm)2500x2400x2600
Load Capacity(mm)200x6000Lx4pcs
Rack Size(LxW)(mm)5300Lx1820W



 Structures:

SEPARATING SYSTEM

 Separator automatically separates trim edge cut and residue into different storage tanks.

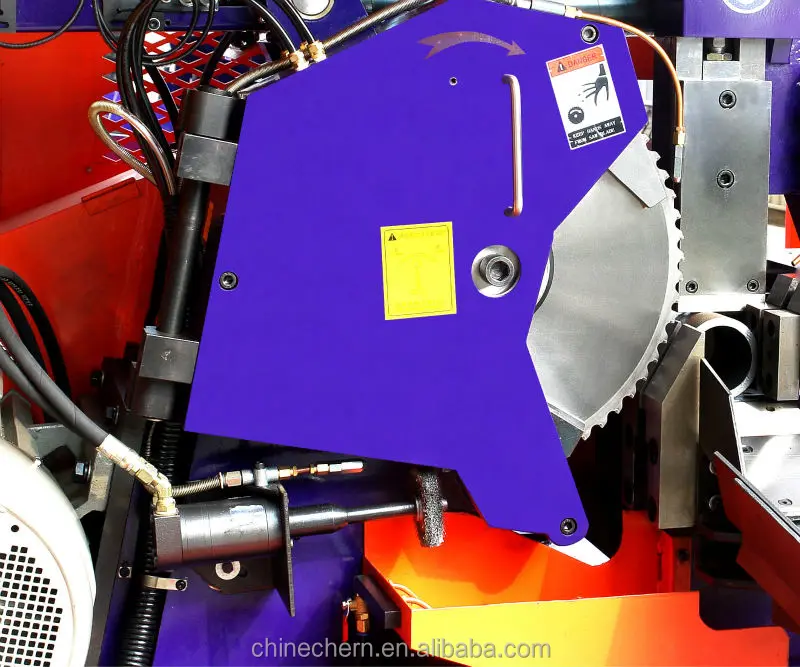

SAW BLADE ANTI VIBRATION DEVICE

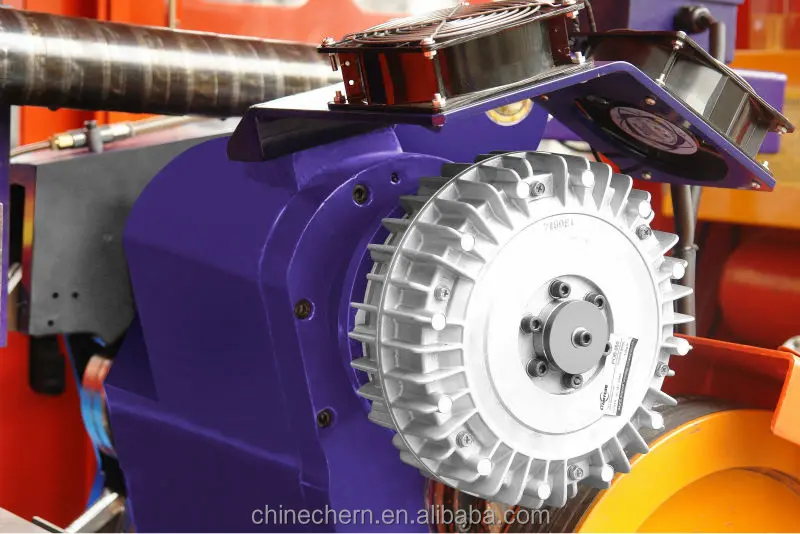

Employs an unique electromagnetic brake system to eliminate vibration and sliding caused by gear backlash, ensuring a superb finish cut surface and enhancing blade service life.(Only for CS,CS-S machines)


UNIQUE GEAR HEAD DESIGN
The unique gear transmission system ensures smooth cutting with high efficiency,
less noise,and low power consumption,and enhances saw blade service life.

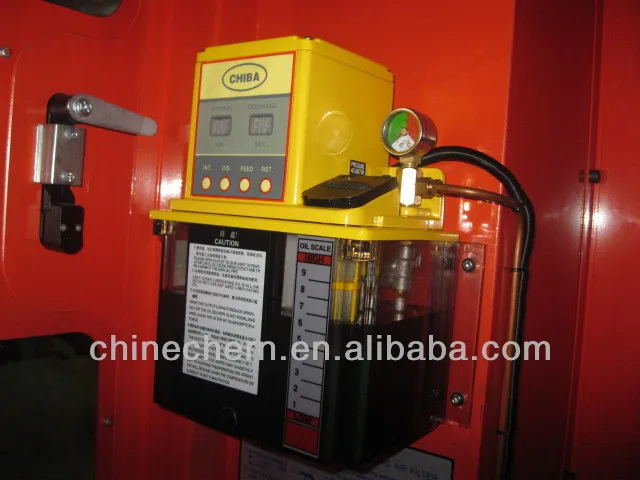

OIL MIST COOLING SYSTEM

 Cools down blade temperature when cutting and provide antirust for cut pieces. Special designed with outwardly open door

 for easy maintenance and adjustment.


OVERHEAD CLAMPING VISE JAW
Ensure material being clamped firmly and avoid vibration while fast cutting single bar or 2 pieces same size bar at one time.

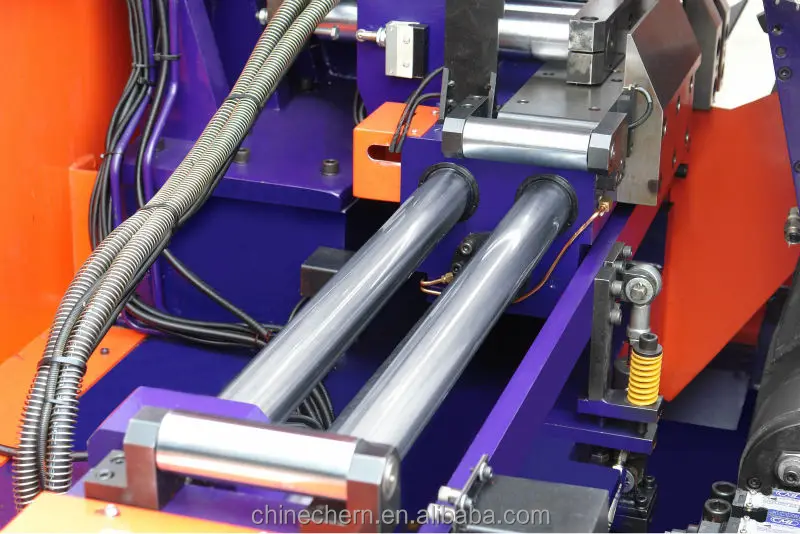

FLOATING SWIVELABLE REAR VISE SADDLE
This hydraulic floating rear vise saddle, linked to the servo motor and ball screw, is excellent for gripping and delivering even bowed or bent bar, ensuring minimum worn surface and greatest cutting accuracy.

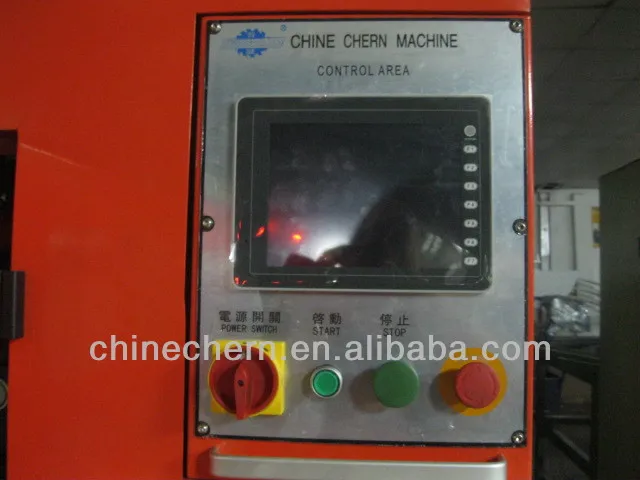

TOUCH SCREEN CONTROL
It's a fuzzy, graphic, colorful,digital and tactile control panel,allowing easy presetting for various work-piece. It has an automatic detector display to indicate operational errors and causes of malfunctions.

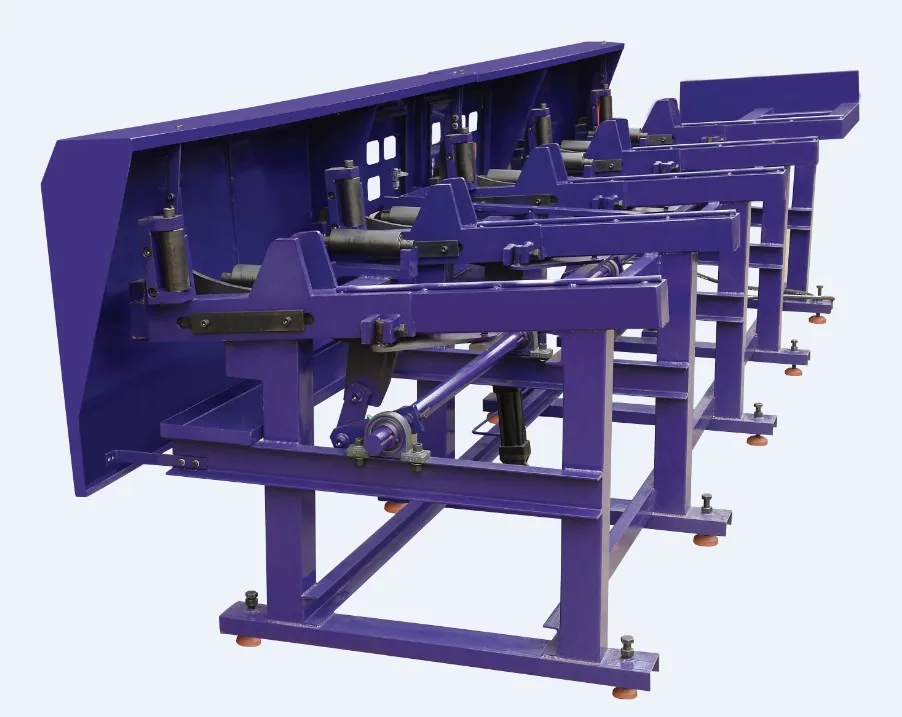

MAGAZINE TABLE
Magazine table holds 6 meters long material for loading different sizes of bars. Customized bar loading system is optional for different

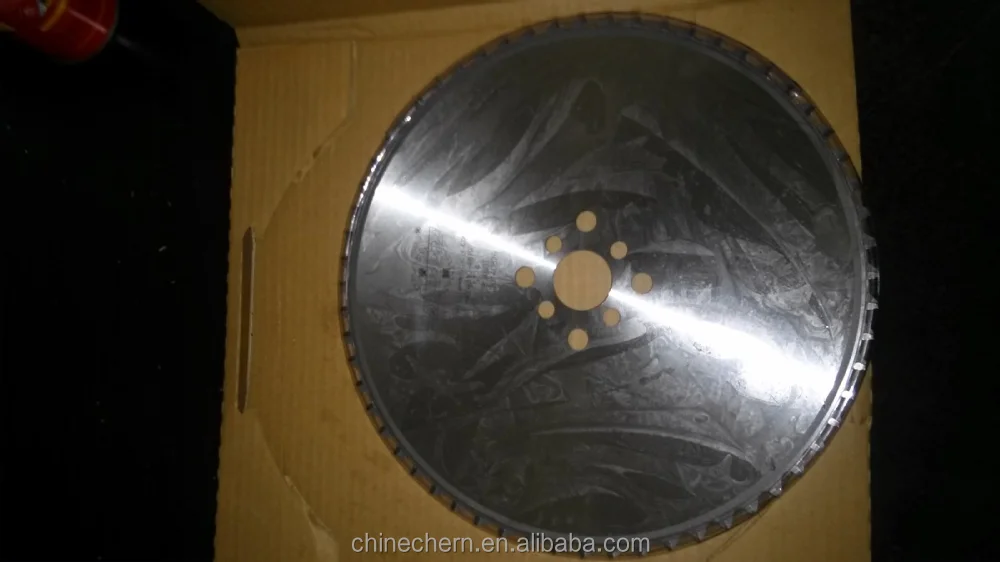

TCT Saw Blade :

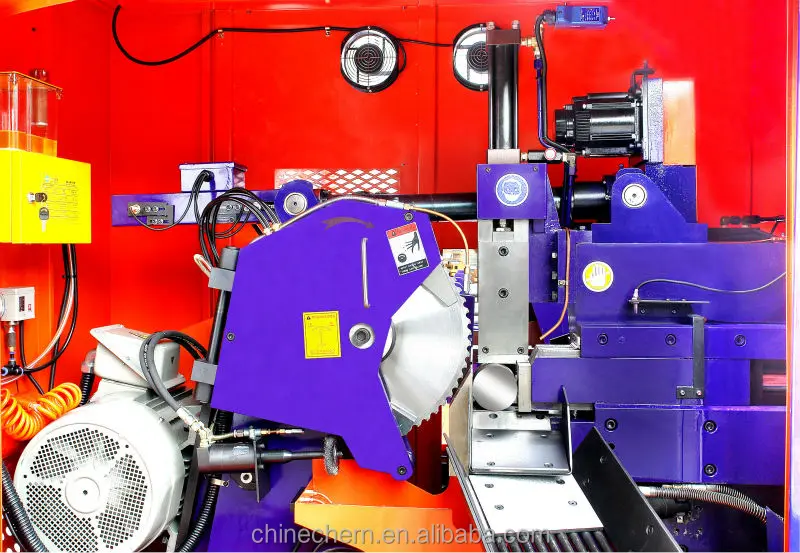

 Machine Picture :
